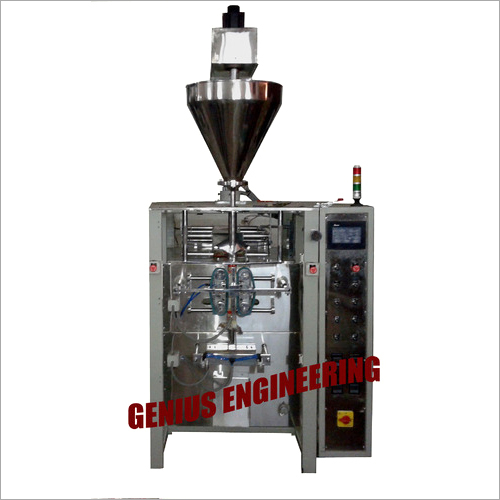

Grains pouch packaging machine

Grains pouch packaging machine
Send Inquiry
Product Code : GEM-50C
Brand Name : GEM
Price And Quantity
  • Minimum Order Quantity
  • 01 Unit
  • Price
  • 450000- 500000 INR/Unit
Product Specifications
  • Type
  • Packaging Line
  • Feature
  • Heavy Duty Machine
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Drive Type
  • Electric
  • Power
  • 05 KW Volt (v)
  • Voltage
  • 440 Volt (v)
  • Weight (kg)
  • 500 Kilograms (kg)
  • Warranty
  • 01 Year
Product Description
  • Product application:Grains, rice, sugar, Detergent Powder
  • Filling Range: 500gm& 1000gm.
  • Pouch Size: To beConveyed in mm.
  • Packing speed: Approx.25- 30 pouches per minute.
  • Sachets orientation: Front collection.
  • Sealing type: Center seal.
  • Filling System: Online Adjustable Volumetric cup filler with Vibrator & Truff.
  • Filling Disc: Adjustable disc (SS- 304 make).
  • Filling Accuracy: + 1%to 2%.
  • Packaging film: Any continuous heat seal able laminated film in roll form.
  • Laminate Rolls Specifications: Inner Core dia: 75mm
  • Outer Dia: Approx.400mm
  • Film draw mechanism: Through1 HP geared motor (Bonvario make).
  • Machine motion: Intermittent.
  • PLC: Programmable Logistic Control (Delta make).
  • HMI: Color Touchscreen  7.1 inch
  • Pneumatic components: Janaticsmake.
  • Temperature Controller:PID (Omron make).
  • Photocell: Panasonic make.
  • Contact Parts: Stainless Steel- 304.
  • Electrical Panel cabinet: Dust proof.
  • Unwinding System: Motorized( Bonvario)
  • Wires & cables: Fenolex make.
  • Main Body: MS Fabricated (Powder coated).
  • Electrical motors: Bonvario makes.
  • Other electrical components: Schneider make.
  • Electrical Supply& Requirement: 3 phase x 415 V, A.C. +/- 10%
  • Power Consumption: 5KW approx.
  • Compressed Air required: 6 CFM @ 6Kg/cm sq.
  • Tool Kit: Yes.
Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 05 Unit Per Month
  • Delivery Time
  • 30-35 Days
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
