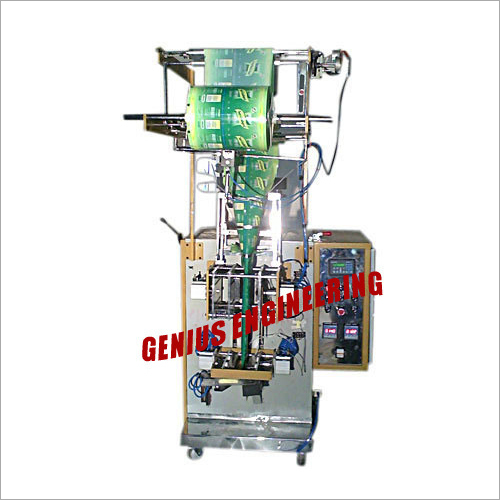

Chaini Khaini Packing Machine

Product Description

• Snus Filling: Approx.0.35 to 0.50gm
• Sealing Type: Center Sealing.
• Filter Paper Size (Open width): 33mm
• Feeding System: Volumetric cup filling disc with Screw feeding.
• Product feeding: Through Air pressure.
• Disc/ Hopper capacity: Approx. 10 Kg.
• Contact parts: SS- 304 make.
• Main body structure: MS Fabricated/ SS-304 Fabricated.
• Claddings: SS- 304 make.
• Machine Speed: Approx. 280-300 filter pouches perminute.
• Paper Puling Type: Through continuous rotary rubber rollers.
• Vertical Sealing: Through Rotary die rollers.
• Horizontal Sealing: Through Clap type sealing jaws.
• Compressed Air: 6 CFM.
• Pouch cutting option: Single- single cutting.
• Filter paper roll: Any Non Woven heat sealable filter paper in roll form.
• Roll Unwinding: Motorized.
• Roll Diameter: Approx. 400mm.
• VFD: Variable frequency drive for machine speed control.
• Electrical Motors: Japan make.
• Conveyor Motor: Japan make.
• Hopper screw motor: Italian Make.
• Sensors: Japan make.
• MCB: German make.
• Machine control: Through PLC (Programmable logistic control). (Mitsubishi make).
• HMI: Touch screen (Color). (Mitsubishi make).
• Temperature Controller: Digital (Multispan make).
• Electrical Supply& Requirement: 440VAC +/- 10%, 3KW (approx.)
• Caster wheel: For easy displacement.
• Output conveyor: Yes.
• Batch collecting bucket: Yes.(Pneumatically open & close mechanism).
• Batch counting: Through Sensor.
• Total production Counter: Yes.
• All electrical parts: Standard make.
• All Pneumatics: Festo make.
• Bearings: NTN, TMK Japan
• Electrical Wire &Cables: RR make.
